Direct piping from Korea

Specifications

Technical Specification

  • Slim & simple design
  • Using a full stainless steel water tank
  • 4 stages filtration
  • Hot: 1.4 litre Cold: 2.85 litre
  • Dimension:

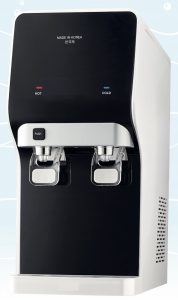

    (Table Top) 230mm x 520mm x 510mm

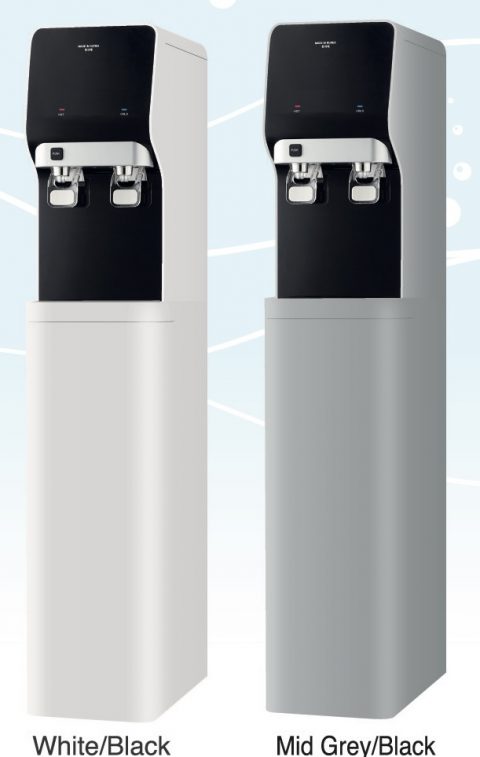

    (Floor Standing) 230mm x 418mm x 1200mm

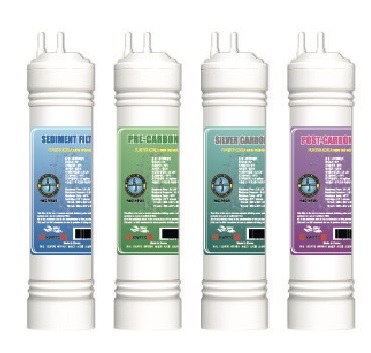

Built-in Filters

For Table top

Step 1. 8″ Sediment
Step 2. 8″ Pre Carbon
Step 3. 8″ Silver Carbon
Step 4. 8″ Post Carbon

For Floor Standing

For Table top

Step 1. 10″ Sediment
Step 2. 10″ Pre Carbon
Step 3. 10″ Silver Carbon
Step 4. 10″ Post Carbon

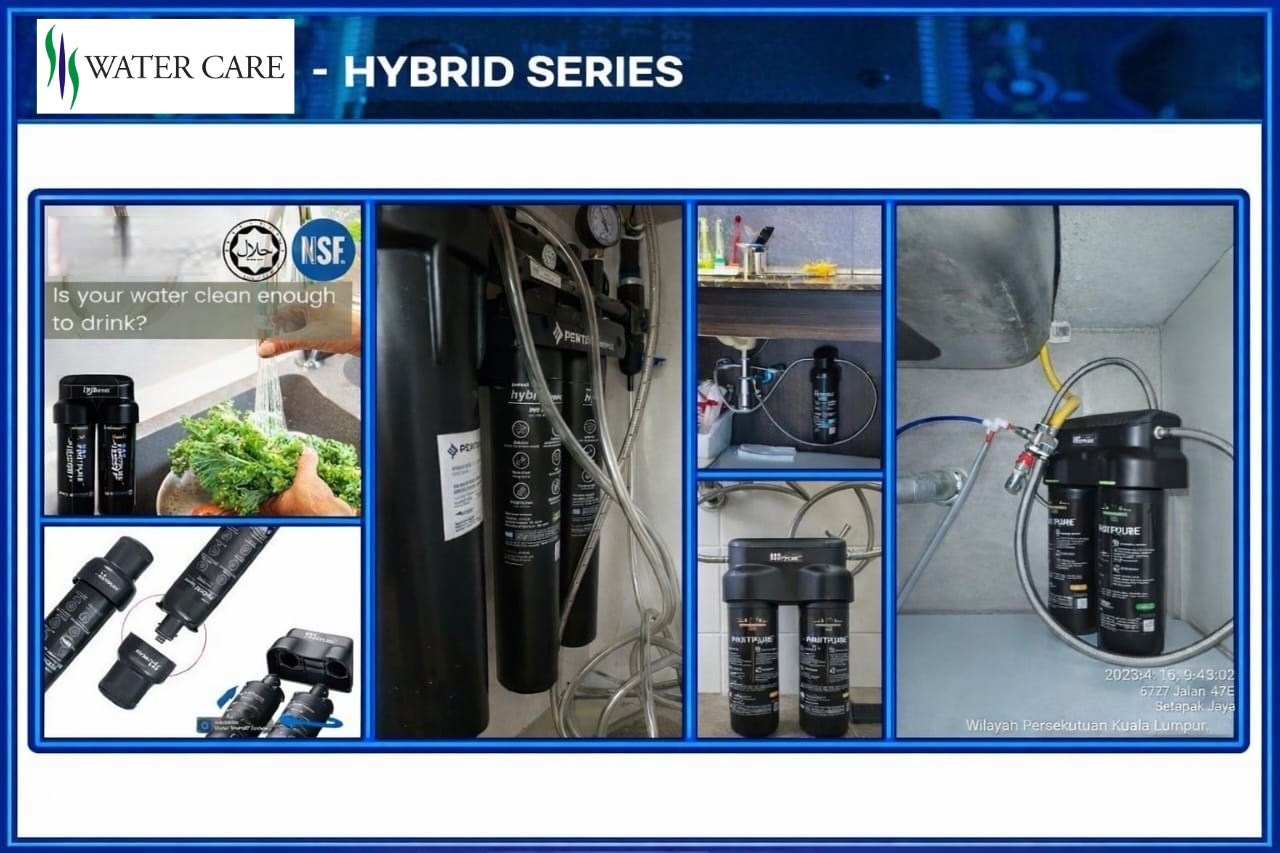

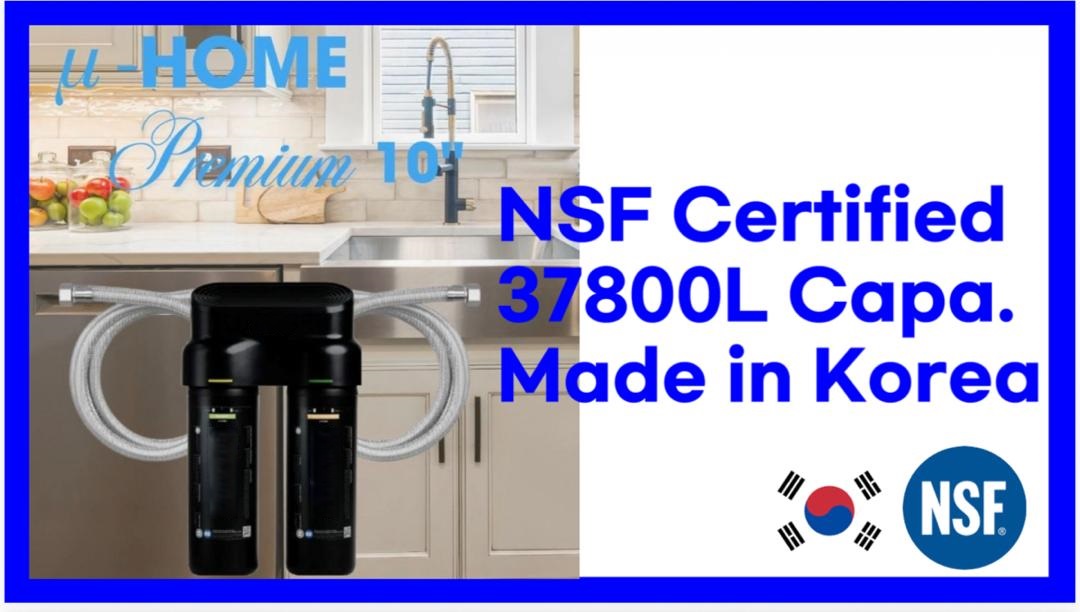

U-HOME 10"(TWIN)

Applications

  1. Drinking Water
  2. Coffee Maker
  3. Kitchen Sink
  4. Ice Maker

Features-Benefits

  1. Quick-change cartridge system for easy and sanitary replacement, preventing contamination.
  2. Filters out rust, sand. dust, and particles larger than 5 microns.
  3. Removes chlorine, volatile organic compounds (VOCs), and trihalomethanes (THM).
  4. Reduces lime water scale with a scale inhibitor (Polyphosphate).
  5. Improves the taste of drinking water by adding mineral ceramic balls that boost natural mineral ions.
  6. Enhances water safety and hygiene with anti-bacterial ceramic balls.

Specification

  • Model No
    FPPI10TW
  • Product Type
    Quick Change System
  • Purification Type
    Tankless Purification
  • Dimension (Head + Filter)
    95 x 97 326 (W x D H) mm
  • Water Pressure
    10-125psi (0.7-8.7kgf/cm)
  • Flow Rate
    1-5 GPM (5.67 LPM)
  • Capacity
    10,000 gallons (37.800 liters)
  • Pore Size
    Nominal 0.5μm
  • Connection (Hose , Fitting)
    3/8 inch . 1/2 inch

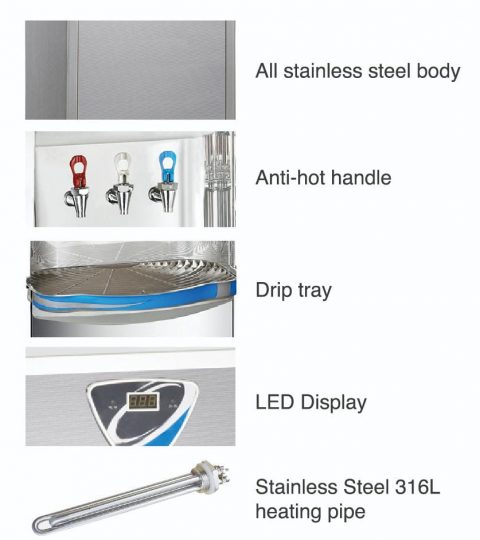

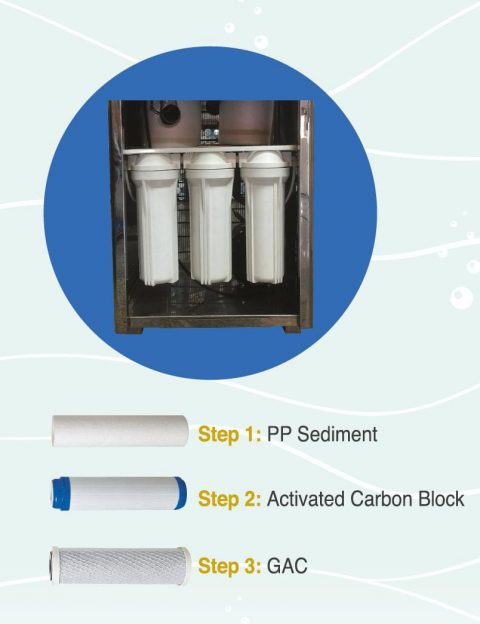

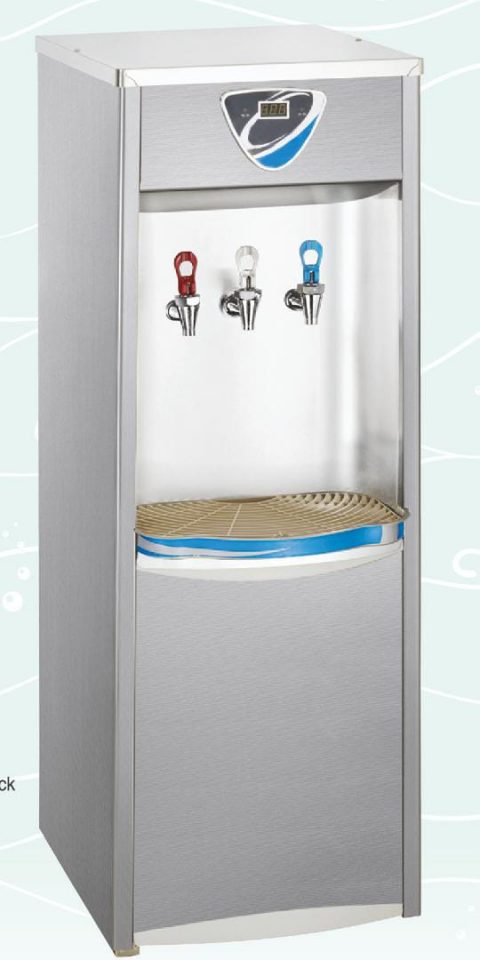

Instant Hot and Cold Water Purifier

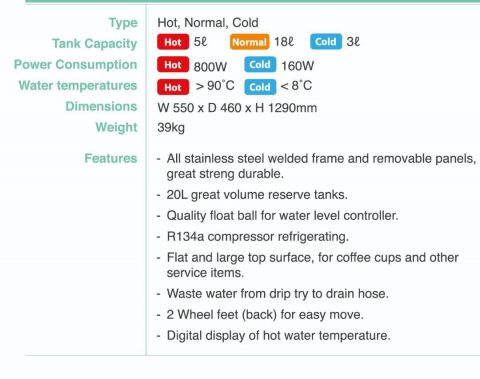

Specification

Instant Hot & Warm Water Purifier

Specification
